IE55 Installation Instructions¶

Quick-reference mating and inspection procedure for the Teledyne Impulse IE55 subminature connector.

Source: Teledyne Impulse IE55 inspection instructions.

Read before mating

Before engaging the connector, the parts must be lubricated using 3M Silicon Lubricant or Silicon Pump Spray Connector Lubricant supplied by Teledyne Impulse.
The locking sleeve should NOT be used to engage the parts — only to hold the parts together after they are fully engaged.

Mating Procedure¶

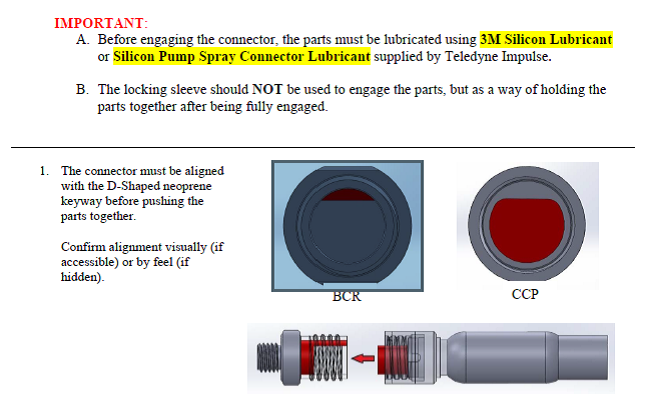

1. Align the keyway¶

The connector must be aligned with the D-shaped neoprene keyway before pushing the parts together. Confirm alignment visually (if accessible) or by feel (if hidden).

Keyway alignment — BCR and CCP faces

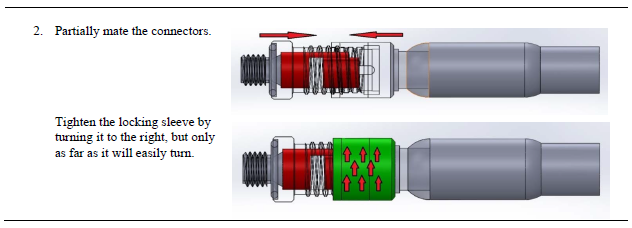

2. Partially mate, then start the sleeve¶

Partially mate the connectors. Tighten the locking sleeve by turning it to the right, but only as far as it will easily turn.

Partially mate and start the locking sleeve

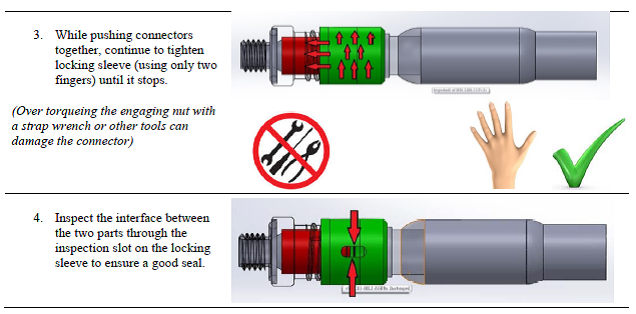

3. Push together and hand-tighten¶

While pushing the connectors together, continue to tighten the locking sleeve — using only two fingers — until it stops.

Push together and tighten by hand only

Do not over-torque

Over-torquing the engaging nut with a strap wrench or other tools can damage the connector. Hand-tighten only.

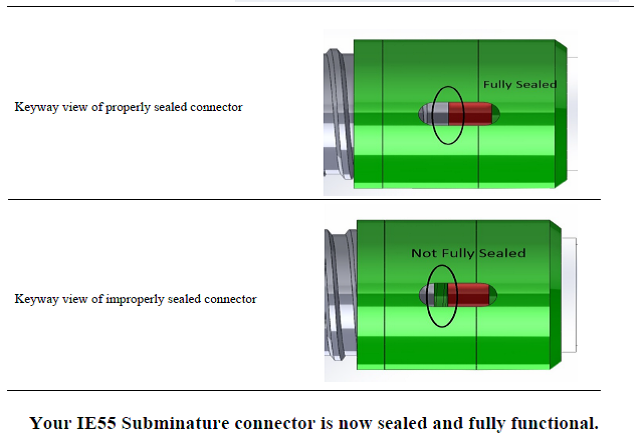

4. Inspect the seal¶

Inspect the interface between the two parts through the inspection slot on the locking sleeve to ensure a good seal.

Inspect the interface through the inspection slot

Keyway view	Result
No gap visible at the interface	Fully sealed ✅
Gap visible at the interface	Not fully sealed ❌ — re-mate and re-inspect

Done

Your IE55 subminature connector is now sealed and fully functional.
